Undetected mud gain or loss can escalate into a well control incident within minutes. The RCP Mud Pit Volume Monitoring system delivers continuous, accurate pit volume tracking across up to six pits, with instant total volume calculation, real-time mud gain and loss readback, and configurable audible and visual alarms triggered the moment setpoints are exceeded.
Available as independent or fully integrated multi-pit systems, the rugged construction suits both land rig and offshore drilling environments.

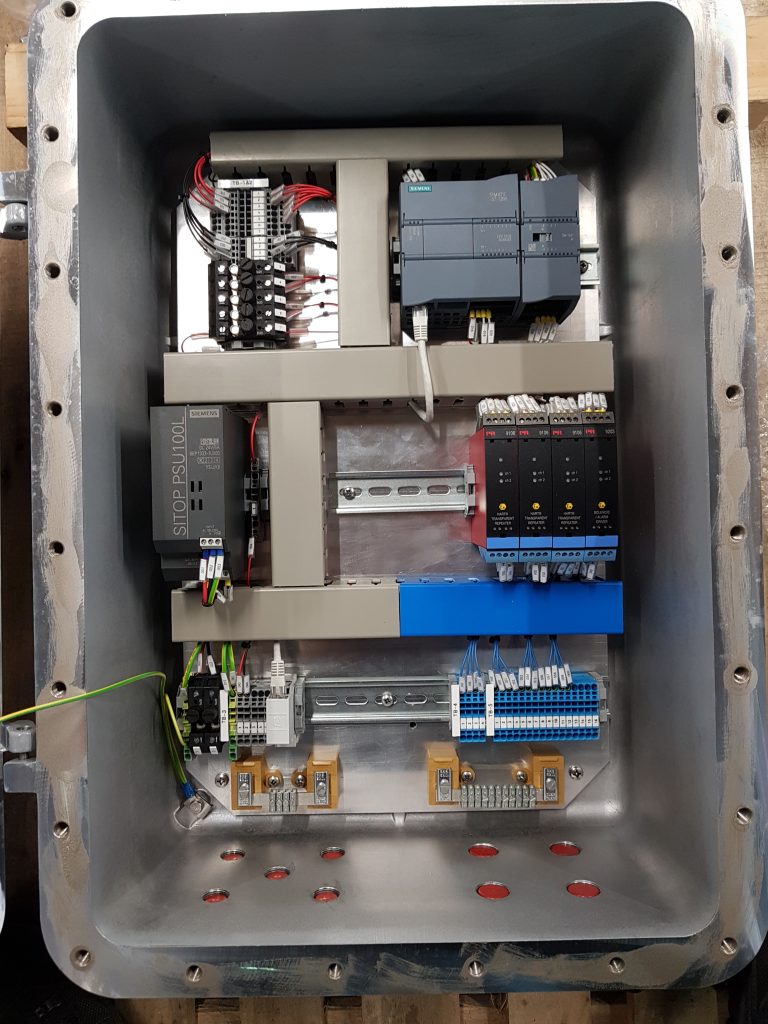

Zone 1 PVT – Controller Backplate

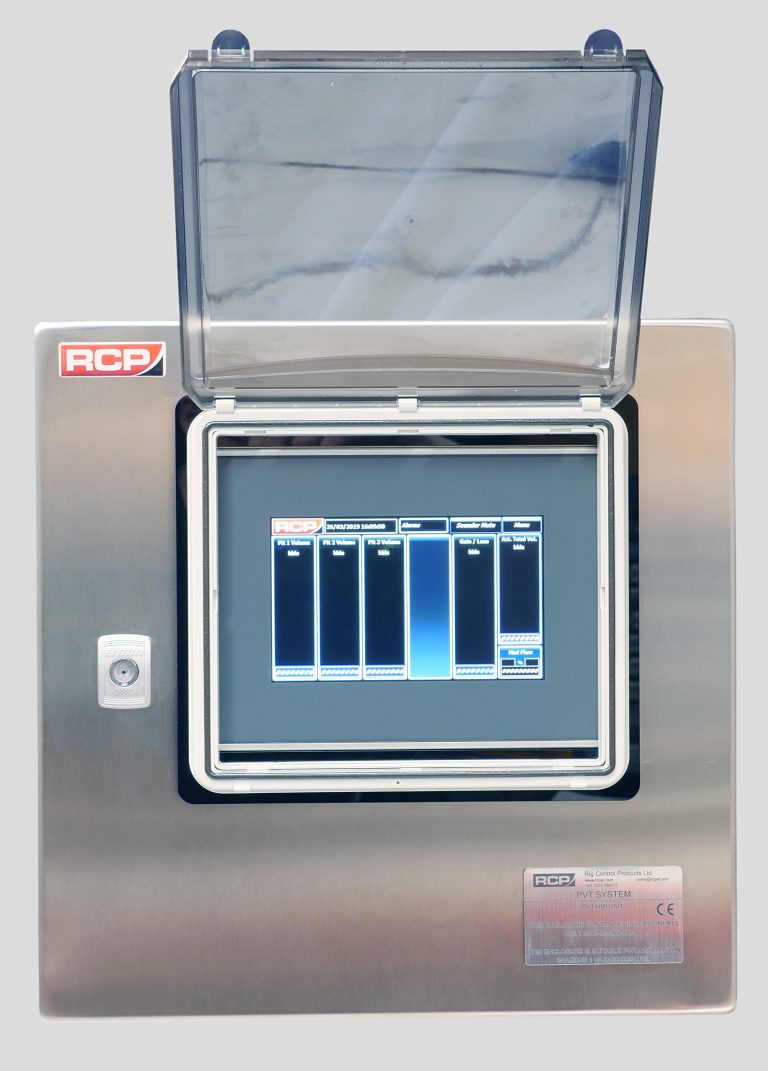

Zone 1 PVT – HMI

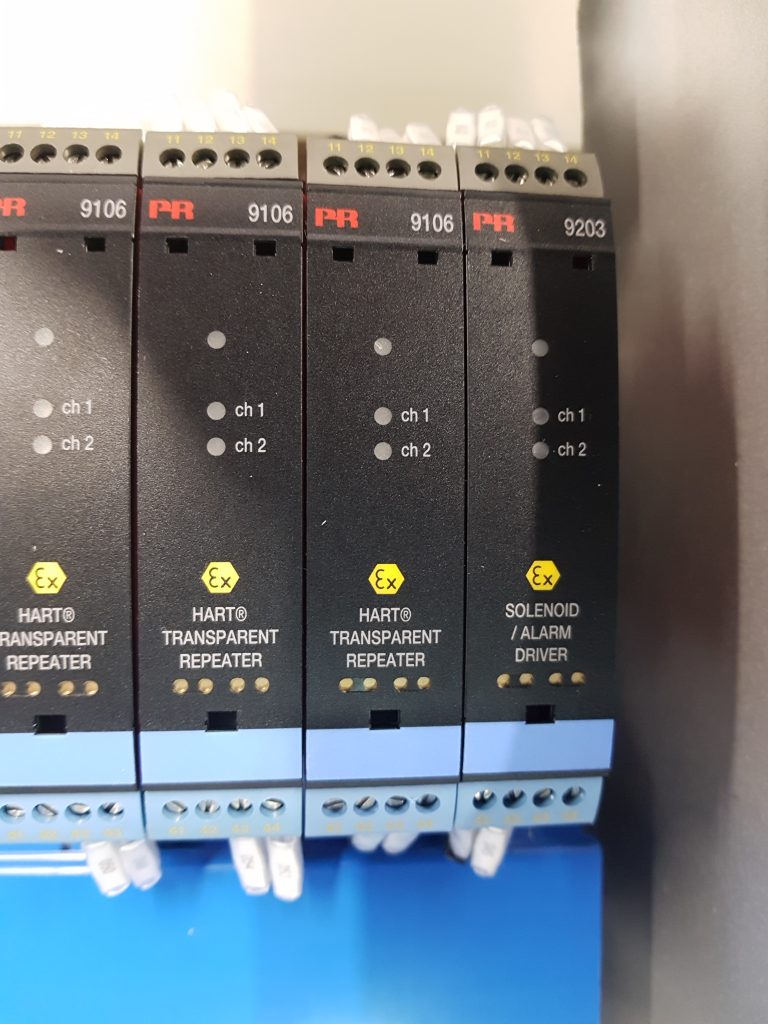

PVT System I.S Associated Interfaces
PVT HMI – Main Screen (Tailored for 7’’ HMI)

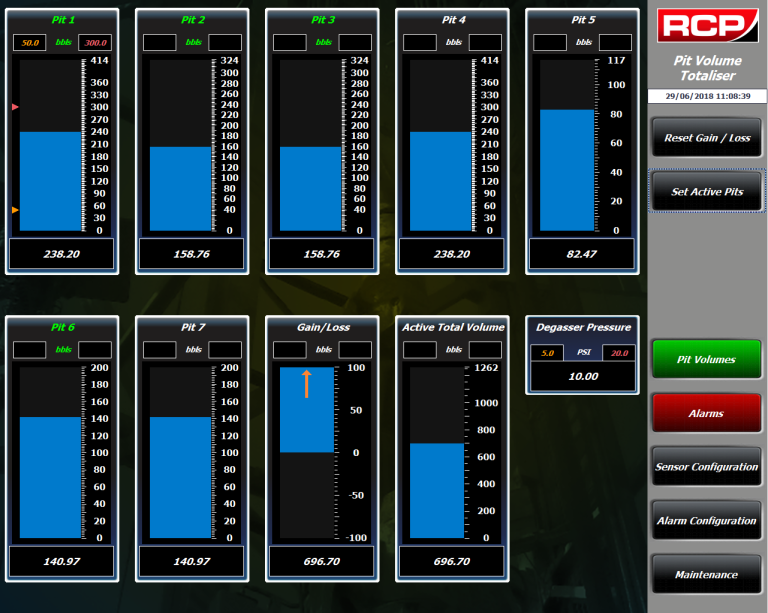

PVT HMI – Main Screen (Tailored for 15’’ HMI)
PVT HMI – Alarm Configuration Screen

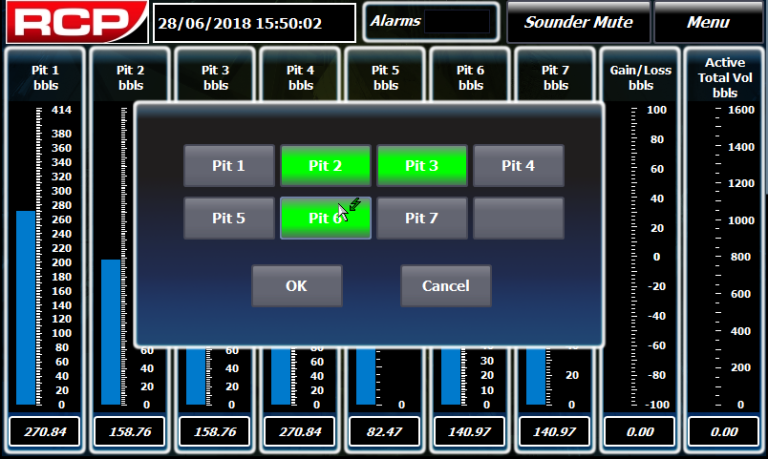

PVT HMI – Active Pit Selection

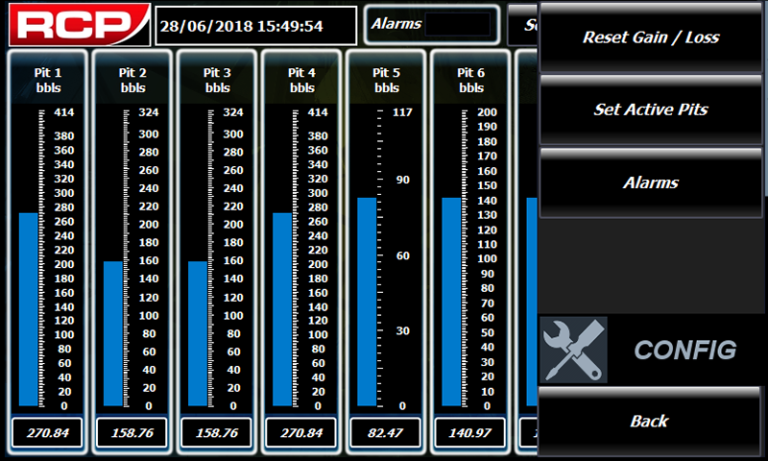

PVT HMI – Menu
Specifications
Volume Monitoring
- Monitors up to six mud pits (Refer to RCP EDR for more pits)
- Accurate mud gain and loss readback
- Instant total pit volume calculation
- Total volume gauge showing combined volume for active pits
- Active pit selection via touchscreen
Alarm Management
- High and low alarm setpoints for mud gain and loss
- Alarm configuration via high/low and increase/decrease on the touchscreen
- Visual alarm warnings when pit setpoints exceeded
- Audible alarm warnings when pit setpoints exceeded
System Configuration
- Independent pit monitoring systems
- Fully integrated multi-pit monitoring systems
- Rugged construction for land rig applications
Applications
- Land-based drilling rig mud pit monitoring
- Offshore drilling operations requiring multi-pit volume tracking
- Drilling operations requiring mud gain and loss monitoring
- Well control applications requiring immediate detection of pit volume changes
