Choke and kill control equipment sits at the critical point between a well control event and a blowout. The RCP choke and kill control system delivers precise hydraulic actuation and real-time monitoring for automatic chokes and gate valves, API 16C compliant and fully ATEX certified, with stainless steel construction and twin ferrule compression fittings throughout.

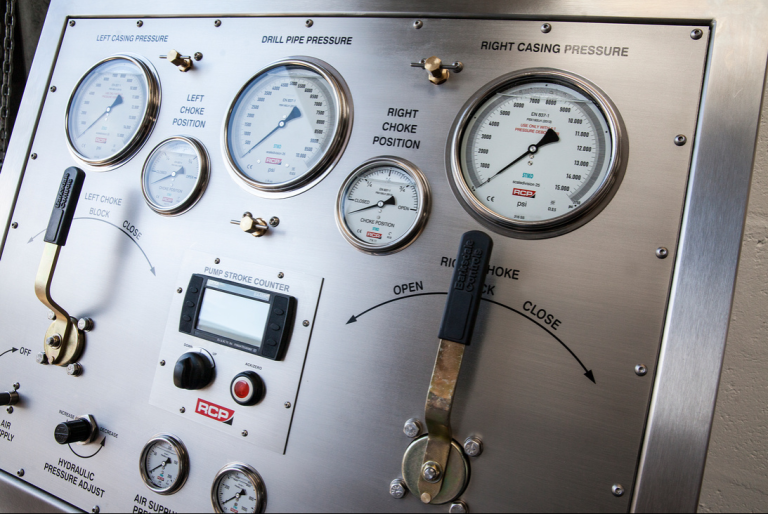

RCP Choke Console – Standard Unit, Faceplate
RCP Choke Console – Standard Unit, General view
RCP Choke Console – Standard Unit, Back view

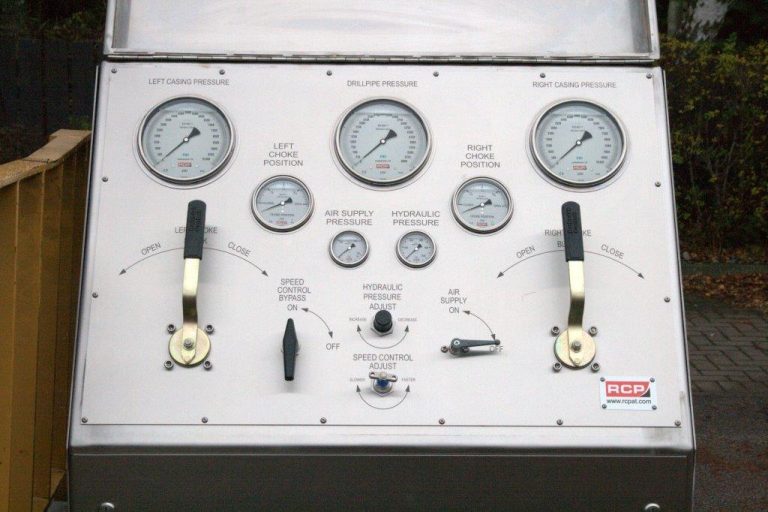

RCP Choke Console – Standard Unit, Faceplate
RCP Choke Console – Accumulator

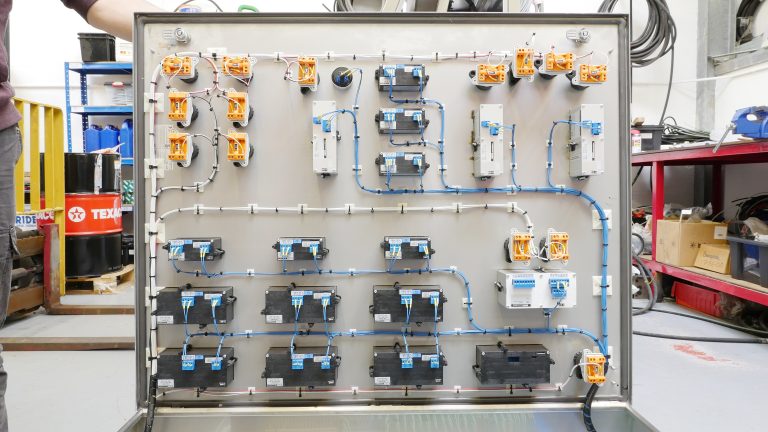

RCP Choke Console – Back of the Indication Panel

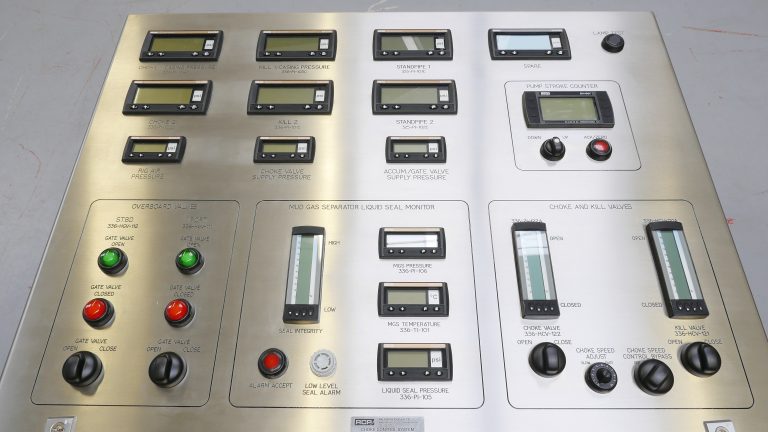

RCP Choke Console – Indication Panel

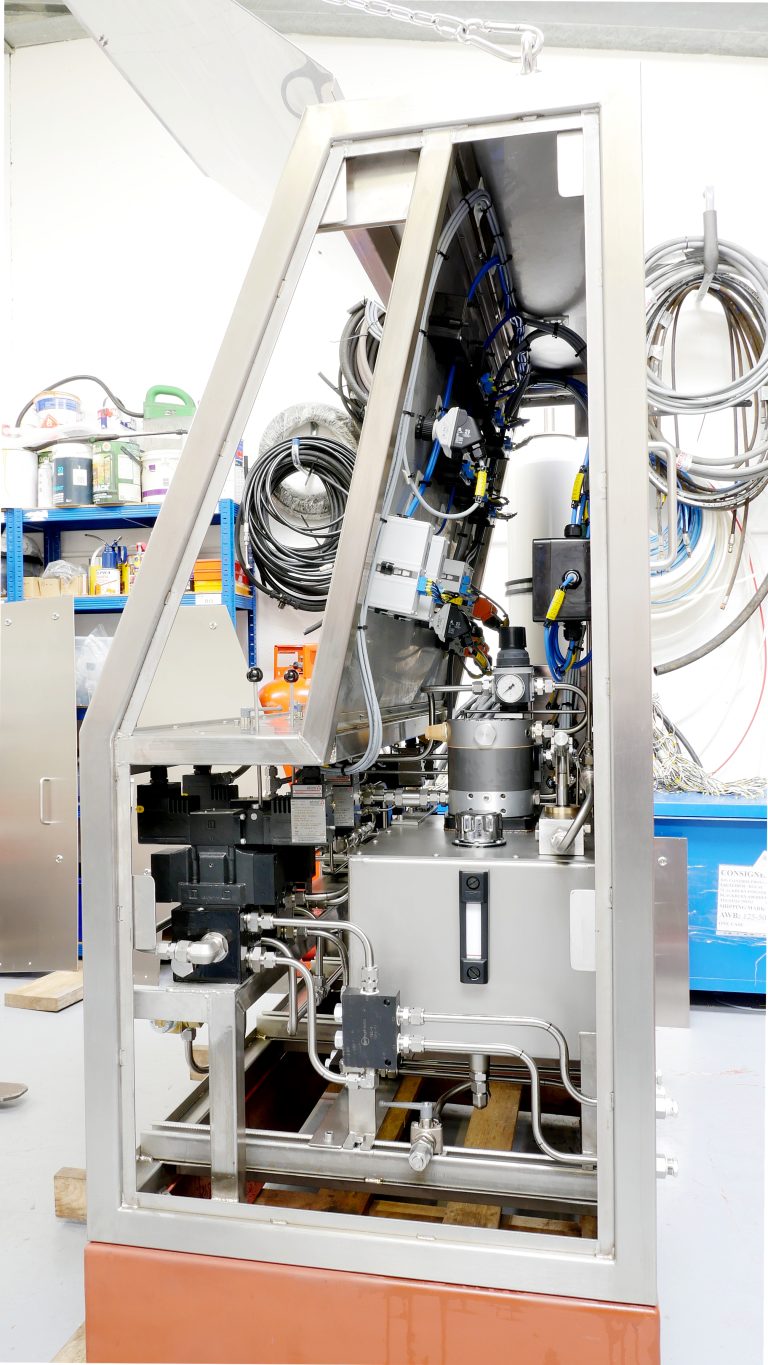

RCP Choke Console – Piping Side View

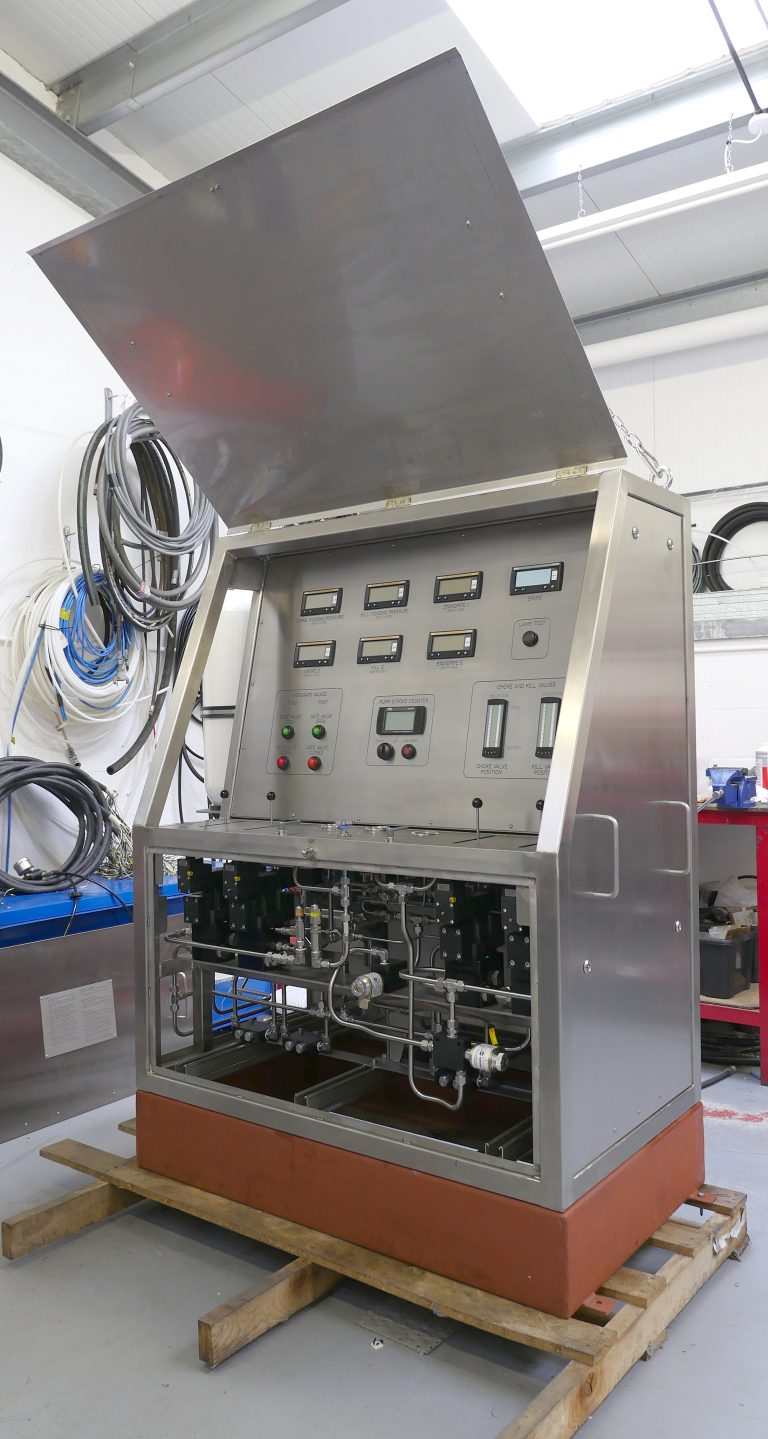

RCP Choke Console – General View
RCP Choke Console – General View

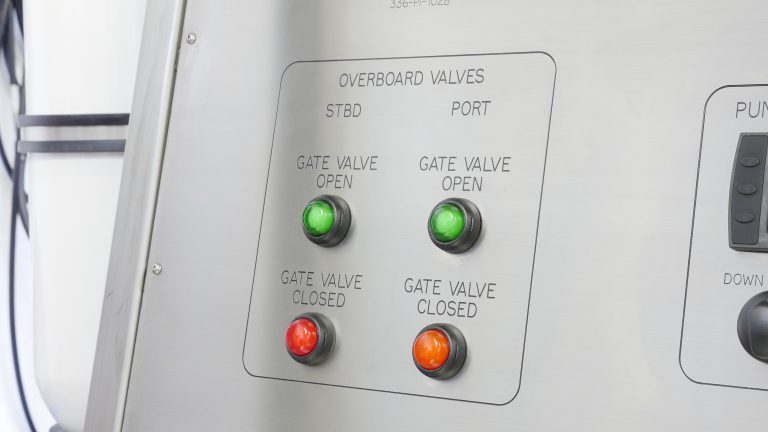

RCP Choke Console – Overboard Valve Integration
System Overview
RCP choke and kill control systems provide hydraulic actuation and monitoring for automatic chokes and gate valves in drilling operations. Systems operate using single system pressures typically set between 300 to 1500 psi, with integrated multi-pressure configurations available where more than one operating control pressure is required.
Each system is designed to meet swept volume actuator requirements for valve control applications. Twin ferrule compression fittings are used throughout the system to ensure leak-free connections, trouble-free operation, and reduced maintenance. Stainless steel construction throughout provides durability in drilling environments.
Control consoles utilize high-quality component selection and careful design layout, delivering what clients describe as highly reliable well control equipment. Systems are compatible with a wide range of valve manufacturers including WOM and Cameron products.
Standard Features
Pressure Monitoring & Instrumentation
- 6″ glycerine-filled pressure gauges with dampers for vibration resistance
- 25 psi increments clearly marked on gauge faces for accurate pressure reading
- Fine scale gauge options available for precision applications
Valve Control
-
- Choke valve speed control with accurate adjustment and bypass function
- Choke position display for real-time valve position monitoring
- Designed to meet swept volume actuator requirements for automatic chokes and gate valves
Construction & Fittings
-
- Stainless steel construction throughout
- Twin ferrule compression fittings used throughout system for leak-free operation
Configuration Options
Console Configuration
- Single choke control console
- Dual choke control console
- Single or dual working pressures
- Floor standing choke control panels
- Wall mounted choke control panels
Hydraulic Power Systems
- Internal HPU (hydraulic power unit)
- External HPU configuration
- Accumulator backup systems
- Nitrogen backup systems
Integrated Monitoring
- Integrated pump stroke counter (available on all console configurations)
Standards Compliance
- API 16C Compliant: All choke and kill control consoles meet API 16C standards for choke and kill equipment
- ATEX Certification: Fully independent ATEX certification ensuring compliance with hazardous area regulatory requirements for drilling operations
- Zone 1 Certification: Mud pump stroke counter certified for Zone 1 hazardous area installation
Mud Pump Stroke Counter (PSC)
The RCP mud pump stroke counter is an ATEX certified, ExD flameproof PLC-controlled system designed for installation in Zone 1 hazardous areas. The system monitors up to 4 mud pumps simultaneously and displays stroke count readback on a clear backlit screen.
Features
- AC powered with battery backup for uninterrupted operation
- ATEX certified for use in Zone 1 hazardous areas
- Clear backlit text display
- High alarm setpoints for abnormal pump operation notification
- Panel mount or standalone display configuration options
- Rapid installation and setup
Integrated Well Control Systems
For applications requiring broader scope central control, RCP provides custom integrated well control systems combining multiple traditionally independent control packages. Integration capability includes choke and kill control with accumulator backup, gate valve control, liquid seal monitoring, pump stroke counters, and multiple valve position indicators.
RCP has delivered integrated systems with American Bureau of Shipping (ABS) design review approval, demonstrating capability to meet classification society requirements and client specifications for complex multi-function well control installations.
Applications
- Offshore drilling rig well control systems
- Land-based drilling operations
- Workover and well intervention operations
- Drilling operations requiring automatic choke control
- Gate valve actuation for blowout preventer and well control systems
- Multi-pump drilling operations requiring stroke count monitoring
