Glycol injection failures at critical well control moments carry significant operational and safety consequences. The RCP Glycol Injection Unit uses an air-operated double-head dual-acting (DHDA) pump to deliver infinitely variable high-pressure liquid flow up to 21,596 psi from standard rig air pressure.
The DHDA pump stalls at a predetermined pressure and holds it without consuming power or generating heat — providing a proven low-maintenance solution for continuous or emergency injection applications in hazardous offshore environments.

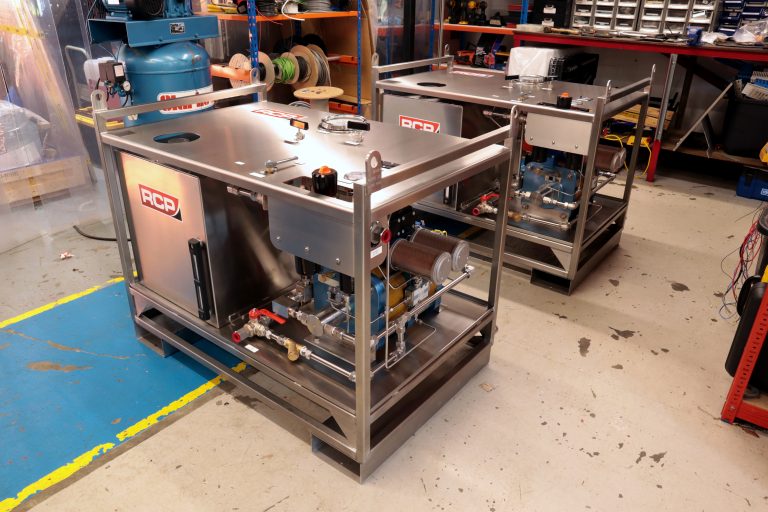

2 x 156L Tank Size, Zone 1 Glycol Injection Unit

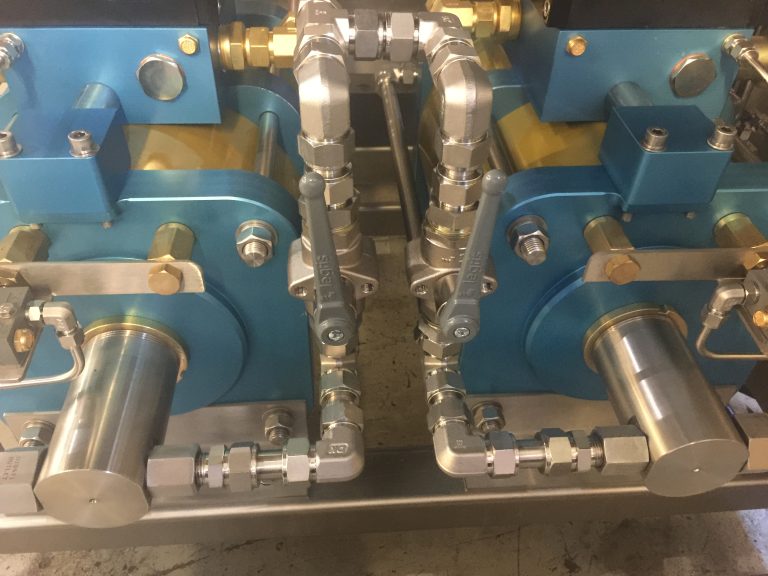

RCP Glycol Injection Unit – Dual redundant unit, TDA 216 pumps

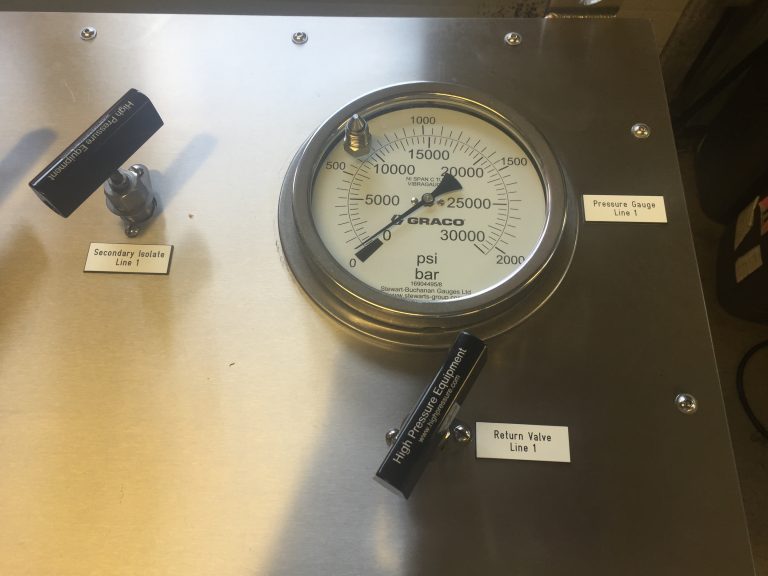

RCP Glycol Injection Unit – Pressure Gauge

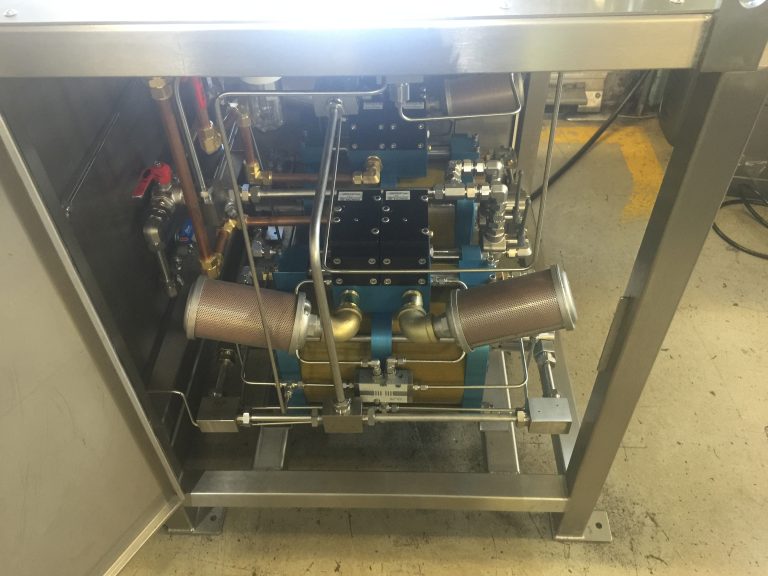

RCP Glycol Injection Unit – Piping

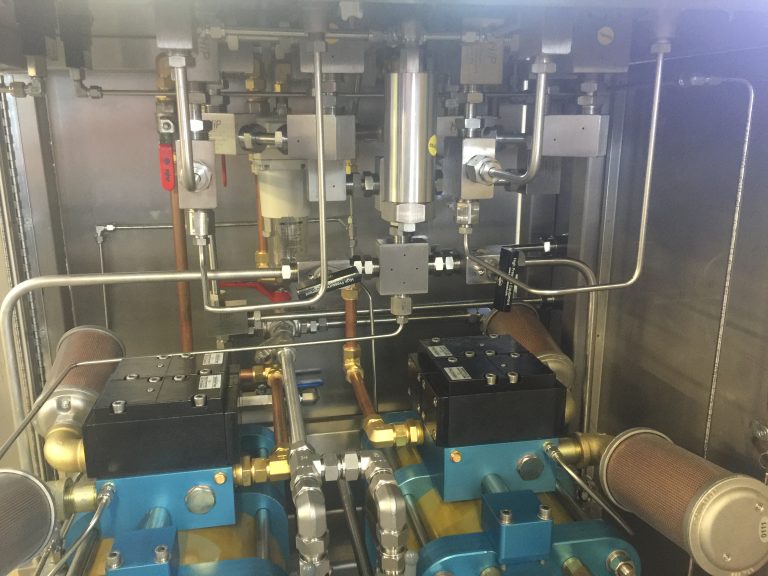

RCP Glycol Injection Unit – Piping

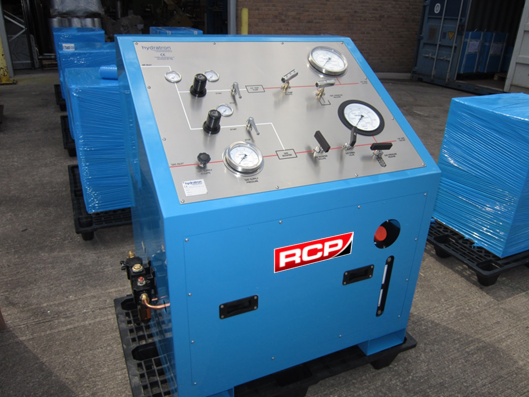

RCP Glycol Injection Unit
Standard Features
- Air operated DHDA pump with stainless steel wetted parts
- Skid mounted in heavy-duty stainless steel frame with 4 lifting eyes, forklift pockets, mounting feet, fixing holes, and earth bosses
- Fluid inlet strainer
- Air filter, regulator with gauge and lubricator
- Hydraulic pump air controls with self-relieving pressure reducing regulator and pump start/stop valve
- Pump on/off valve
- 30,000 psi dual scale pressure gauge, dampened movement, ±1% accuracy class
- High pressure PRV with optional pressure ranges to suit application
- Stainless steel tank with filler/breather cap, sight glass, and drip tray — tank drain output with isolation valve
- Glycol input port and top fill of tank options
- Pneumatic pump stroke counter
- Controls and gauges panel mounted and clearly labelled
Pump performance data
| RCP Pump Model | Max Working Pressure (MWP) | Output Per Cycle |
|---|---|---|
| 63 | 6,300 psi (434 bar) | 16.8 in³ (0.275 litres) |
| 125 | 12,500 psi (862 bar) | 8.59 in³ (0.14 litres) |
| 216 | 21,600 psi (1,489 bar) | 4.83 in³ (0.079 litres) |
Discharge capacity gallons/litres per minute (approximately) based on 212 SCFM (6000 nL/M) with 100 psi (7 bar) driving air
| RCP Pump Model | 0 psi 0 bar |
1,500 psi 103 bar |
3,000 psi 207 bar |
5,000 psi 345 bar |
6,000 psi 414 bar |
8,000 psi 552 bar |
10,000 psi 690 bar |
12,000 psi 828 bar |
15,000 psi 1,035 bar |
20,000 psi 1,380 bar |
|---|---|---|---|---|---|---|---|---|---|---|
| 63:1 63:1 Ratio |
7.08 gal 32.2 ltrs |
5.00 gal 22.7 ltrs |
3.56 gal 16.2 ltrs |
1.76 gal 8.00 ltrs |
0.62 gal 2.80 ltrs |
* | * | * | * | * |
| 125:1 125:1 Ratio |
3.72 gal 16.9 ltrs |
2.80 gal 12.7 ltrs |
2.33 gal 10.6 ltrs |
1.83 gal 8.30 ltrs |
1.61 gal 7.31 ltrs |
1.06 gal 4.80 ltrs |
0.66 gal 3.00 ltrs |
0.08 gal 0.36 ltrs |
* | * |
| 216:1 216:1 Ratio |
2.10 gal 9.50 ltrs |
1.87 gal 8.50 ltrs |
1.63 gal 7.40 ltrs |
1.41 gal 6.40 ltrs |
1.35 gal 6.10 ltrs |
1.21 gal 5.50 ltrs |
1.08 gal 4.90 ltrs |
0.95 gal 4.30 ltrs |
0.77 gal 3.50 ltrs |
0.35 gal 1.60 ltrs |
Options
- ATEX certification
- Integrated IIC T5 GD stainless steel reservoir
- 3rd party design review – ABS, DNV, Lloyd’s
- Backup Pump
- 316 Stainless Steel for all external framework and tubing (Offshore spec)
