Glycol injection unit (GIU)

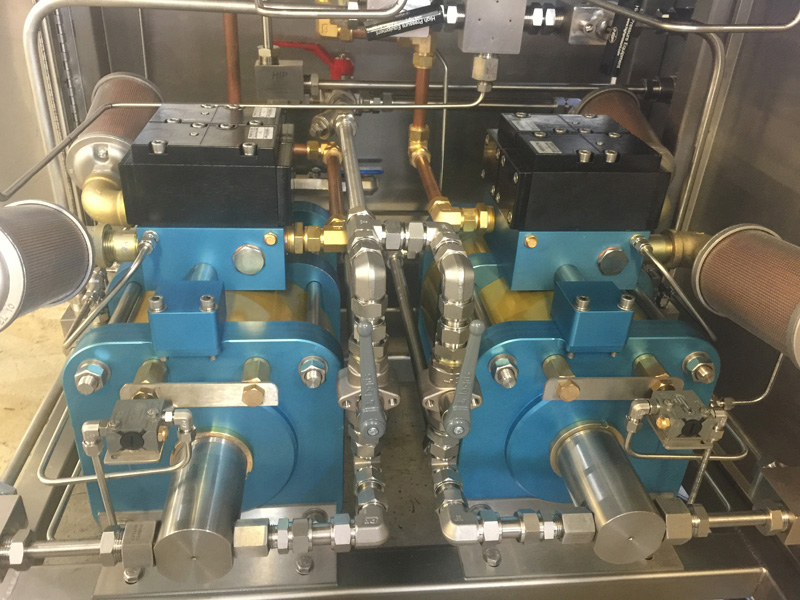

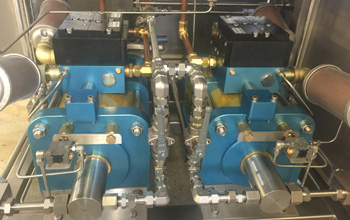

The GIU utilises an air operated double head dual acting pump (DHDA) to produce an extremely high pressure and infinitely variable liquid flow when required. Typical flows rates are given as 3.5 litres per minute (lpm) at 15000psi and 1.6lpm at 20000psi.
The DHDA pump has been designed to deliver an infinitely variable flow rate using standard rig air pressure, GIU equipment is easily integrated into RCP’s High pressure temperature monitoring equipment for automatic control of glycol injection required in emergency situations.
The DHDA pump offers a proven low maintenance, highly reliable solution for any critical injection process, with the ability to stall at a predetermined pressure and hold this fixed pressure without consuming power or generating heat. The pump is one of the most robust on the market.
This unit is suitable for installation in hazardous areas and is easily integrated with all other RCP control and automation equipment.
Pump performance data
RCP Pump Model |
Max Working Pressure (MWP) |
Output Per Cycle |
63 |
6,300psi (434 bar) |
16.8in3 (0.275 litres) |
125 |
12,500psi (862 bar) |
8.59in3 (0.14 litres) |
216 |
21,600psi (1489 bar) |
4.83in3 (0.079 litres) |
Discharge capacity gallons litres per minute (Approximately) based on 212 SCFM (6000 nL/M) with 100psi (7 bar) Driving Air
RCP Pump Model |
||||||||||
psi : bar : |
0 0 |
1500 103 |
3000 207 |
5000 345 |
6000 414 |
8000 552 |
10,000 690 |
12,000 828 |
15,000 1035 |
20,000 1380 |
RCP Pump Model |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
63:1 |
7.08 gal |
5.00 gal |
3.56 gal |
1.76 gal |
0.62 gal |
* |
* |
* |
* |
* |
63:1 Ratio |
32.2 gal |
22.7 ltrs |
16.2 ltrs |
8.00 ltrs |
2.80 ltrs |
* |
* |
* |
* |
* |
|
|
|
|
|
|
|
|
|
|
|
125 |
3.72 gal |
2.80 gal |
2.33 gal |
1.83 gal |
1.61 gal |
1.06 gal |
0.66 gal |
0.08 gal |
* |
* |
125:1 Ratio |
16.9 ltrs |
12.7 ltrs |
10.6 ltrs |
8.30 ltrs |
7.31 ltrs |
4.80 ltrs |
3.00 ltrs |
0.36 ltrs |
* |
* |
|
|
|
|
|
|
|
|
|
|
|
216 |
2.10 gal |
1.87 gal |
1.63 gal |
1.41 gal |
1.35 gal |
1.21 gal |
1.08 gal |
0.95 gal |
0.77 gal |
0.35 gal |
216:1 Ratio |
9.50 ltrs |
8.50 ltrs |
7.40 ltrs |
6.40 ltrs |
6.10 ltrs |
5.50 ltrs |
4.90 ltrs |
4.30 ltrs |
3.50 ltrs |
1.60 ltrs |
Standard Features / Glycol Injection Unit (GIU)
• Air operated DHDA pump

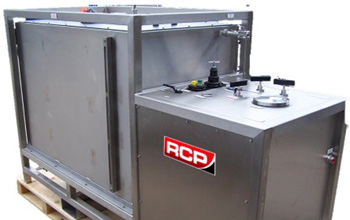

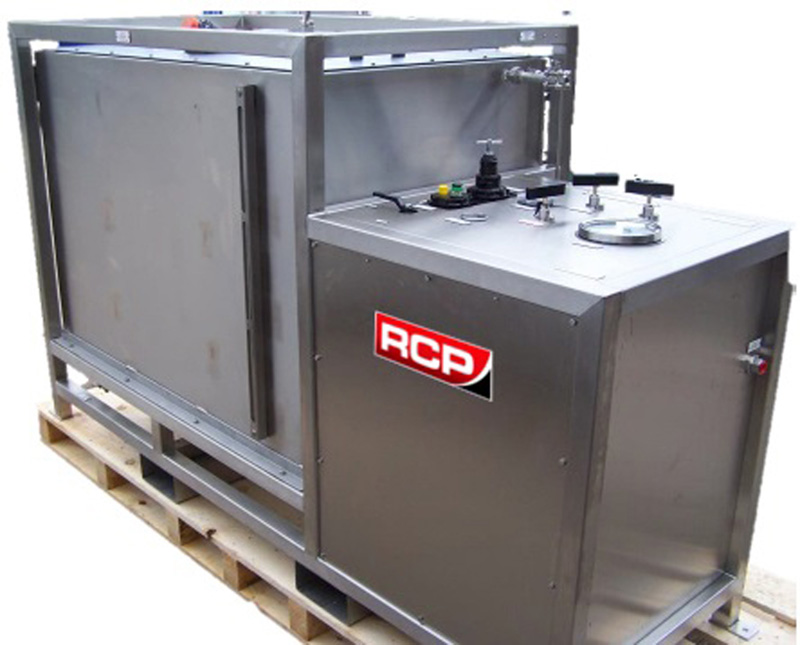

• Skid mounted
• Fluid inlet strainer
• Air filter, regulator with gauge and lubricator
• Pump on/off valve

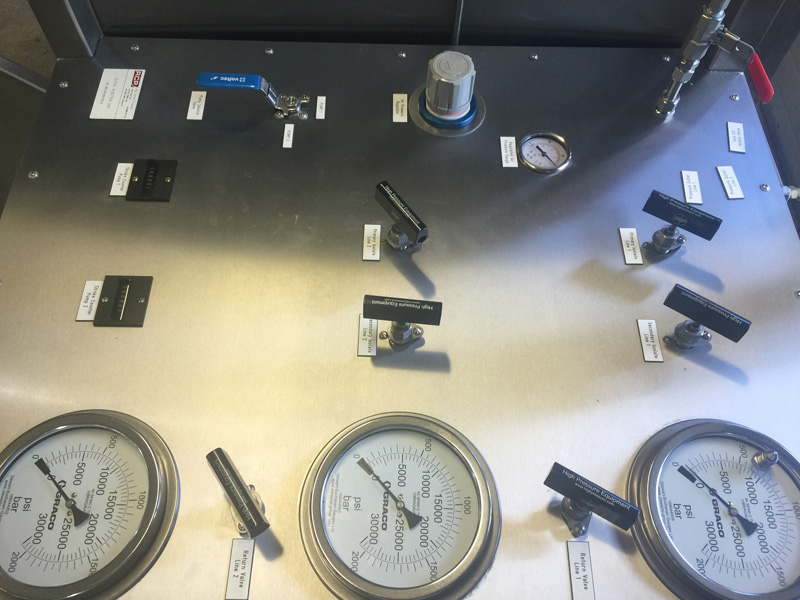

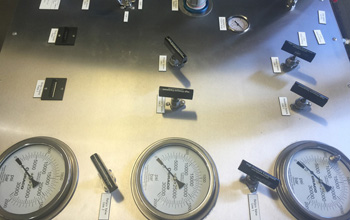

• 6” diameter (150mm) diameter panel mounted pressure gauge
• Pressure release valve
• Stainless steel framework, pressure isolation valves
• Pump stroke counter
Options
• ATEX certification
• Integrated IIC T5 GD stainless steel reservoir
• 3rd party design review – ABS, DNV, Lloyd’s
• Backup Pump
• 316 Stainless Steel for all external framework and tubing (Offshore spec)
